NSD 760- Fast response temperature sensor, with display, 0 ÷ 10V

Description

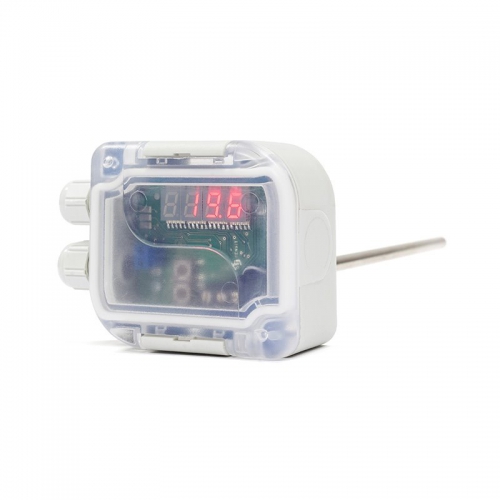

The structure of the sensor stem allows the sensor to be used for direct measurement of the temperature in ducts and also allows the sensor to react quickly to temperature changes. The temperature sensor element is housed in a metal stem with a length of 50 to 220 mm. The plastic head of the temperature sensor with display is provided with a cable entry or a connector; the measured temperature is shown on the 4-digit display under the transparent hood of the head. The temperature sensors with display can be used for all control systems compatible with output signals listed in the table of technical parameters.

The maximum temperature range for the current loop setting of the temperature sensors with display is -50 to 150°C. Within this range the required operating temperature ranges can be programmed, while the minimum difference between the lower and upper limit of the temperature range is 10°C. The temperature range of the measurement with the temperature sensor with display is -50 to 110 ° C and at the same time the maximum temperature around the head is -30 to 70 ° C and it should also not be exceeded for a short time. The temperature sensors with display meet the degree of protection IP 65 according to EN 60529. The temperature sensors with display are easy to install thanks to the unique design of \"S-head\" made by SENSIT sro

The sensors are designed to be used in a chemically non-aggressive environment, the use should be selected with regard to temperature resistance of the head and metal housings.
