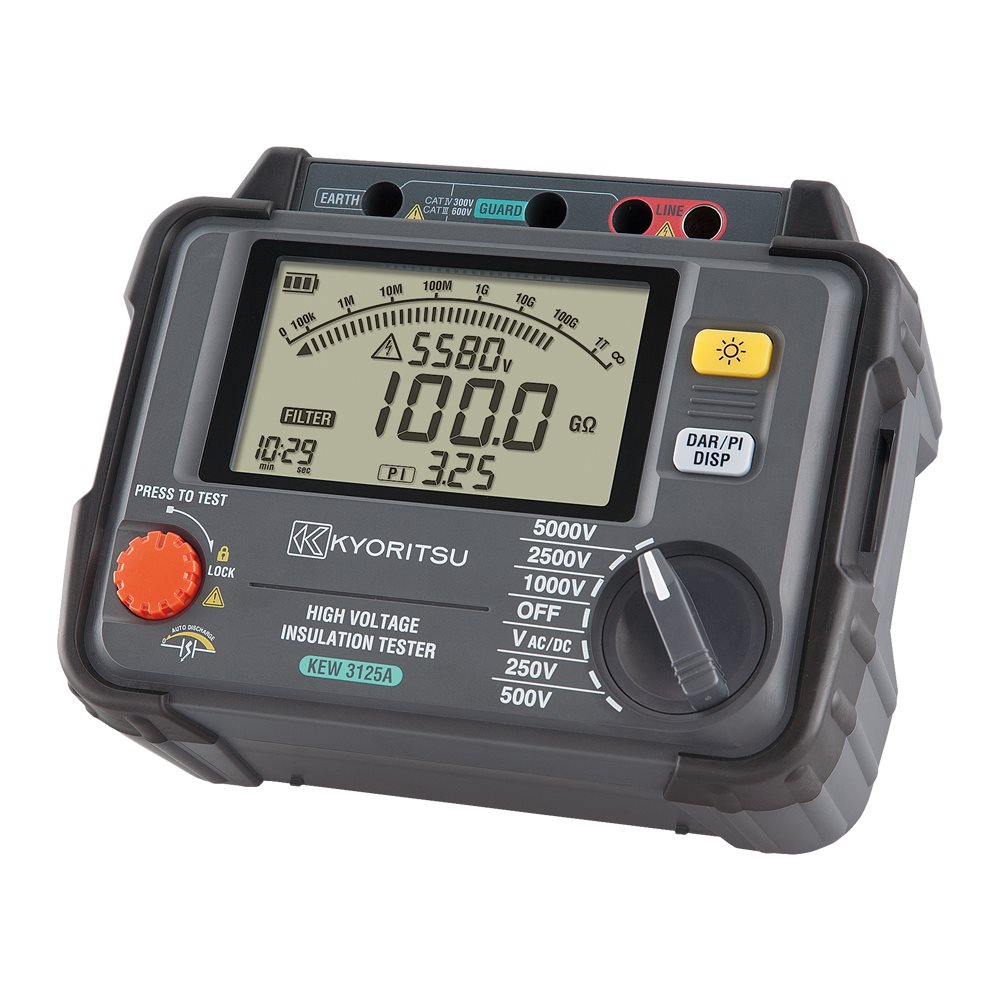

3125A DIGITAL ISOLATION METER WITH BARGRAPH
back to category
General features
- Sturdy and ergonomic design
- De facto standard high voltage insulation meters
- Insulation resistance up to 1TΩ
- Short-circuit current up to 1.5 mA
- Large test voltage from 250V to 5000V
- Diagnostic function of PI and DAR
- Newly designed alligator clip
- Supplied with a sturdy hard case
- The filter function reduces noise disturbance to obtain stable measurements
- Large backlit screen with bar graph
- Voltage Warning
- Safety standards IEC61010-1 CAT IV 300 V / CAT III 600 V
Description
To belong
- 7165A (Line Probe: 3m)
- 7264 (grounding cord: 3m)
- 7265 (safety cord: 3m)
- 8019 (hook probe)
- 9180 (3025A hard case)
- 9181 (3125A hard case)
- LR14 (alkaline battery C) x8
- Instruction manual
