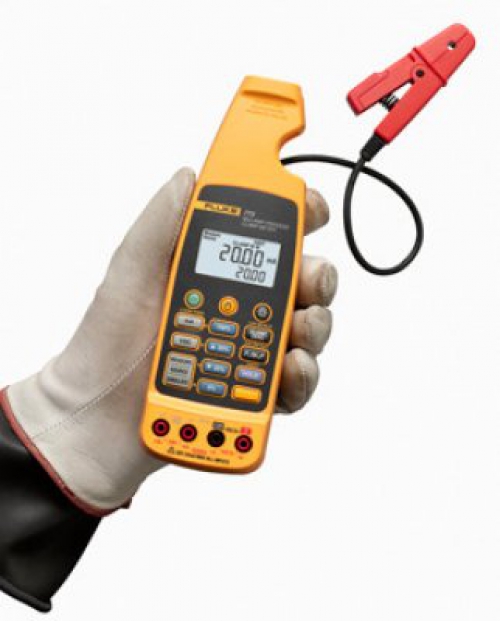

Fluke 772 Process mA Current Clamp
back to category
You can test and repair your 4-20mA loops without breaking the loop or shutting down the system.
Description
The 772 is an extension of the functions and capabilities of the popular 771 mA clamp meter. Now all you have to do is decide which model will save you the most time.
- The highest accuracy of 0.2% in this class
- 0.01 mA . resolution and sensitivity
- Measure signals from 4 to 20 mA 'without breaking the loop'
- Measuring mA signals for PLCs and analog I/O signals from control systems.
- Backlit dual display showing both mA readings and percentage of the range from 4 to 20 mA
- Spot light illuminates wires that are difficult to see when measuring in dark enclosures
- Detachable clamp meter with extension cable for measurements in narrow gaps
- Measure signals from 10 to 50 mA in older control systems with a range of 99.9 mA
- Automatically change the output signal for remote testing from 4 to 20 mA
- Power saving options: automatic shutdown of the instrument and backlight off after a certain time to extend battery life
- Hold function records and displays changing readings
The 772 also offers you:
Measure signals from 4 to 20 mA with internal measurement
Simultaneous internal mA measurement with 24V loop supply for powering and testing transmitters
Generation of signals from 4 to 20 mA for testing I/Os or I/Ps of control systems
mA output signal linearly increasing or stepping output signal (25% steps)
Automatically change the output signal for remote testing from 4 to 20 mA
